1. Battery Cell

Battery cell: lithium iron phosphate(Li-FePO4)

Current/Voltage: 280Ah/3.2V

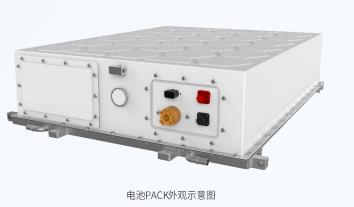

2. Battery Pack (48 cells connected in series to form a battery pack)

NO	Name	Unit	Specification
1	Cell	/	LF280K
2	Nominal voltage per box	V	153.6
3	Single box power	KWh	43
4	Single box weight	Kg	300
5	Single box size	MM	1067858240
6	Single box series and parallel number	/	1P48S
7	Rated Capacity	Ah	280
8	Energy density	Wh/Kg	>140
9	Cooling method	/	Liquid cooling

3. Battery Cluster (5pcs battery packs connected in series to form a battery cluster)

NO	Name	Unit	Specification
1	Nominal voltage	V	768
2	Nominal power	KWh	215
3	Series and parallel	/	1P240S
4	Charge/discharge efficiency	/	≥92%
5	Low voltage power supply	W	≈200
6	Communication mode	/	CAN2.0
7	Weight	KG	≈ 1200
8	Overall Dimension	MM	862* 1074* 1614
9	Cooling method	/	Liquid cooling

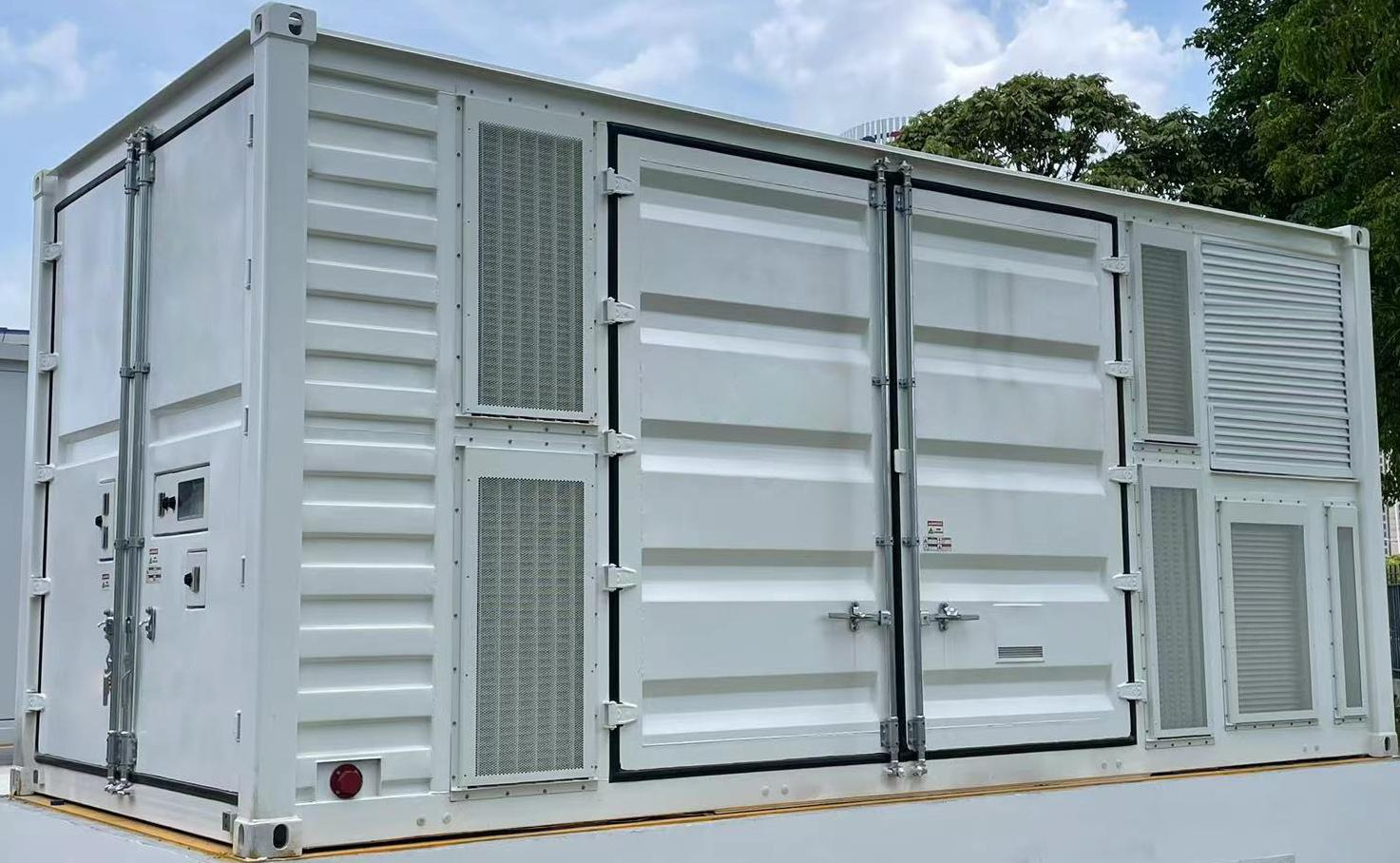

4. Battery energy storage system (5pcs Battery clusters connected in series toform a battery energy storage system) + BMS+PCS+Grid-connectedconvergence cabinet+liquid cooling system+fire-fighting system+BMS integrated into a 20inch container

NO	Name	Unit	Specification	Mark
1	Nominal voltage	V	768
2	Nominal power	KWh	1075	@25℃±3
3	Voltage Range	V	625-875
4	Recommended SOC Window	%	10-90
5	Nominal charge/discharge power	KW	500
6	Charging Temperature	℃	0-50
7	Discharge Temperature	℃	-20-50
8	Recommended environment Temperature	℃	25℃±10
9	Thermal Management	/	Liquid cooling
10	Dimension	mm	605828962438
11	DCDC	pcs	0	0
12	PCS	pcs	100KW	5PCS
13	Liquid Cooled Conditioner	pcs	10KW	1
14	Output Voltage	V	400
15	Output Frequency	HZ	50
16	Fire Fighting System		Hot Air Melt Level 3 Fire Protection
17	BMS		3 level-Management
18	EMS		Battery Energy Management System
19	Grid-connected convergence cabinet	pcs	1
20	Solar power charging time	Hours	5-6hours	200kwp
