NO

Name

Unit

Specification

1

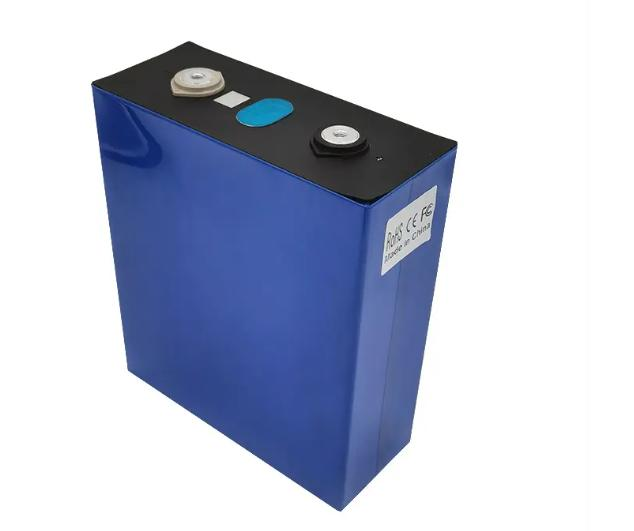

Cell

/

LF150K

2

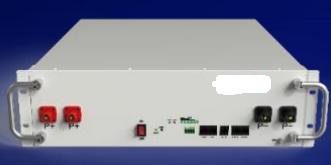

Nominal voltage per box

V

51.2

3

Single box power

KWh

7.68

4

Single box weight

Kg

63

5

Single box size

MM

500*482*161

6

Single box series and parallel number

/

1P16S

7

Rated Capacity

Ah

150

8

Energy density

Wh/Kg

>140

9

Cooling method

/

air cooling

NO

Name

Unit

Specification

1

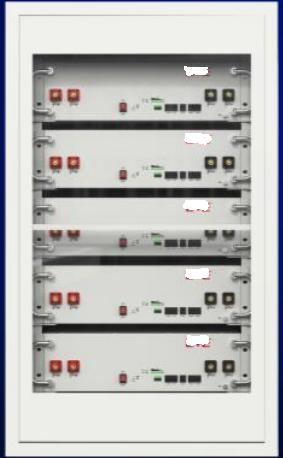

Nominal voltage

V

716.8

2

Nominal power

KWh

107.5

3

Series and parallel

/

1P224S

4

Charge/discharge efficiency

/

≥92%

5

Low voltage  power supply

W

≈200

6

Communication mode

/

CAN2.0

7

Weight

KG

≈ 1220

8

Overall Dimension

MM

630*600*2353

9

Cooling method

/

air cooling

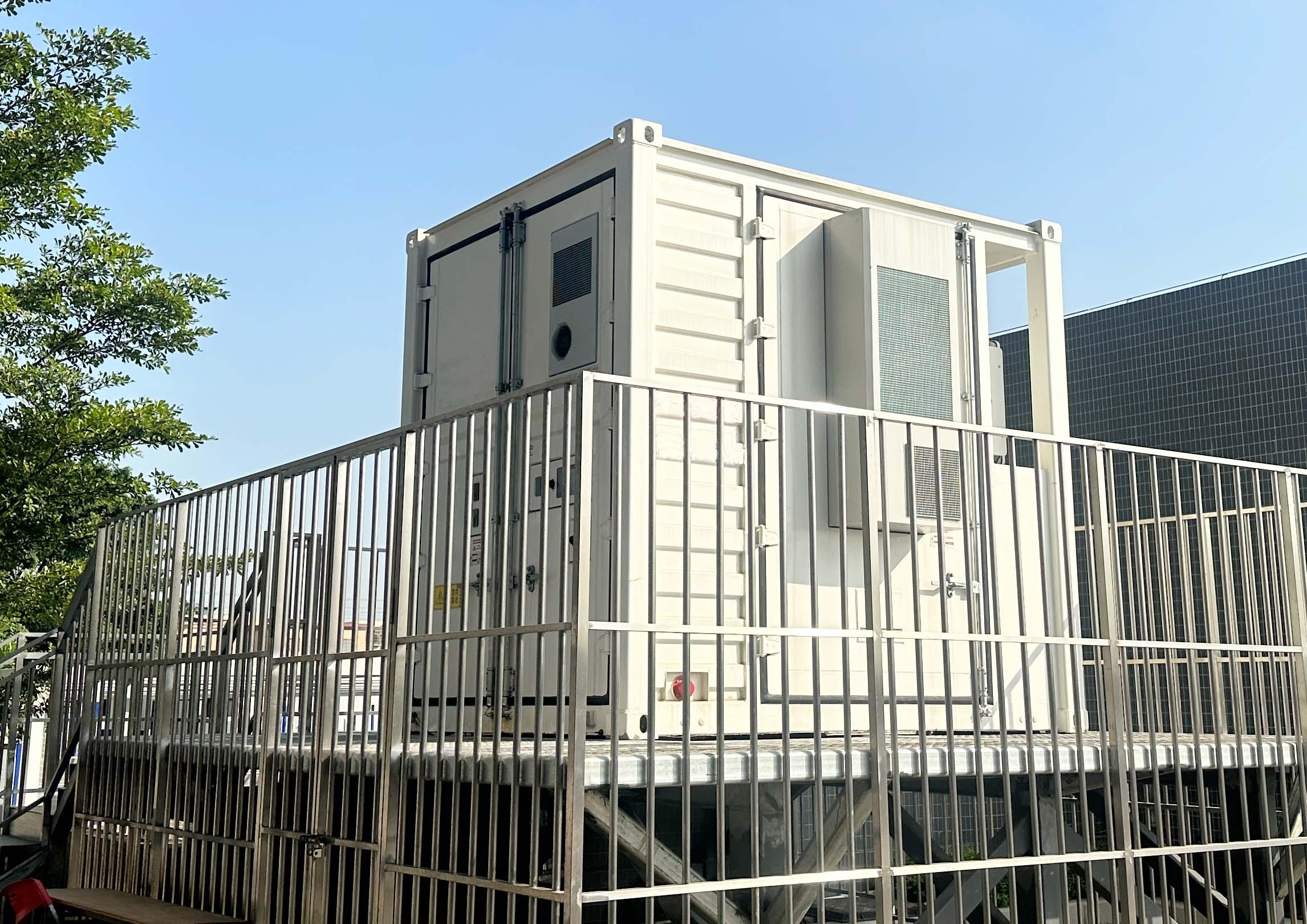

Battery energy storage system cabinet(10 Battery clusters in parallel)

NO

Name

Unit

Specification

Mark

1

Nominal voltage

V

716.8

2

Nominal power

KWh

1075

@25℃±3

3

Voltage Range

V

595-817.6

4

Recommended SOC Window

%

10-90

5

Nominal charge/discharge power

KW

1000

6

Charging Temperature

℃

0-50

7

Discharge Temperature

℃

-20-50

8

Recommended environment Temperature

℃

25℃±10

9

Thermal Management

/

air cooling

10

Dimension

mm

/

11

PCS

pcs

SINEXCEL 100KW*10

10PCS

12

Air Cooled Conditioner

pcs

10KW

13

Output Voltage

V

AC 400(three phase)

14

Output Frequency

HZ

50/60

15

Fire Fighting System

Hot Air Melt Level 3 Fire Protection

16

BMS

3 level-Management

17

EMS

Battery Energy Management System
